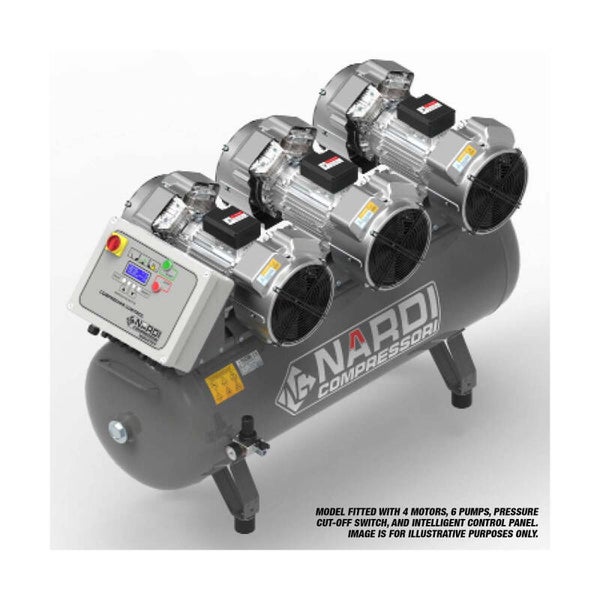

SIP EXTMP27090CP Nardi Extreme MP 9.00HP 270ltr Compressor with Control Panel
Sale!
The NARDI EXTREME MP 9.00HP 270ltr CP Compressor offers high performance via V-Twin pumps and 3x 2.20kW slow-running 4-pole motors, plus intake particle diffusion and forced cooling.
Features:
- 400v 3-PHASE input supply
- 270ltr receiver; 145psi (10bar) max. pressure
- 3x 2.20kW (3.00hp) 4-pole slow-running motors
- 63.60CFM (1800ltr/min) max. piston displacement
- 44.50CFM (1272ltr/min) max. free air delivery (FAD)
- Intelligent control panel; motor control, system monitoring
- High-quality 12-cylinder V-Twin pumps with technopolymer piston rings; oil-free for longer life and low maintenance
- Unique crankcase air intake particle diffusion; reduced air contamination ensuring longer life of the valve plate
- Stainless steel fan-shaped valves for long life durability
- Specially-designed concentric 'big end' bearings for reduced vibration and further increased pump life
- For industrial high volume low pressure applications
- Pressure cut-off switch and adjustable air regulator
Specifications:
- ITEM NO. EXTMP27090CP
- Input Supply: 400v 3-PHASE
- Motor Power: 3x 2.20kW (3.00hp) 4-POLE 1400rpm
- Receiver Size: 270ltr
- Piston Displacement: 63.60CFM (1800ltr/min)
- Free Air Delivery (FAD): 44.50CFM (1272ltr/min)
- Max. Air Pressure: 145psi (10bar)
- No. of Cylinders: 12 cylinders
- Noise Level: 75dB(A)
What is Included:
- 1x SIP EXTMP27090CP Nardi Extreme MP 9.00HP 270ltr Compressor with Control Panel
